    GENERAL PROPERTIES
    • Neoprene blend sheet rubber meets AASHTO specifications for highway bridge bearing pads
    • ASTM & AASHTO Grades
    POLYMER
    Neoprene Blend (CR)
Unit of Measure

POLYMER

Polymer

 N/A Neoprene blend (CR)

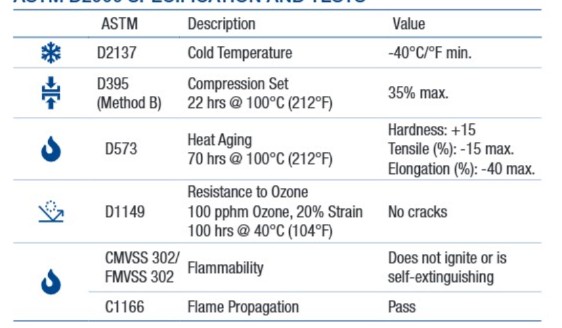

ASTM D2000 SPECIFICATION AND TESTS


ASTM-D2000-SPECIFICATION-AND-TESTS_AB-268

ADDITIONAL SPECIFICATIONS

Grade

 N/A ASSHTO

Finish

 N/A Smooth

Powder

 N/A No

Color

 N/A Black

Specifications

Series

 N/A AB-268

Specification

 N/A ASSHTO

Durometer

 N/A 60

Tensile Strength min.

 N/A 2250 psi

Elongation min.

 N/A 350 %

Type

 N/A Industrial Sheets

Brand

 N/A American Biltrite

Gauge x Width

 N/A 3/4x48 in

Avg. Length (Linear Ft. /Roll)

 N/A 25 ft

Surface

 N/A 100 sft

Approx. Lbs./Roll

 N/A 541 lb

Note

Note

 N/A
    Maximum pieces per roll: 1/16" to 1/2" = 2 pieces, over 1/2" = 1 piece   •   Minimum piece length: 10'   •   Width tolerance: -0 / +1"
    Gauge tolerance: < 1.259" (32 mm) = -0 / +0.118" (3 mm), > 1.259" (32 mm) = -0 / +0.236" (6 mm)
    Meets AASHTO standard specification for plain and laminated elastomeric bridge bearing pads M251-06 (Table X1), polychloroprene, Grade 3. Meets AASHTO LRFD bridge construction specification, section 18.2.
    The following information is printed on the product for traceability: American Biltrite - AB-268 - Lot #.
    Product Evaluation & Audit Solutions audited and compliant for plain elastomeric bridge bearing pads (EBB).
    Please ensure the product meets your application specification prior to order placement.
    Specifications are subject to change without notice. The website version prevails.
    Total roll length may vary by ±10% for domestically manufactured (AB-268 ATLAS BEARING PADS) Series.
