POLYMER

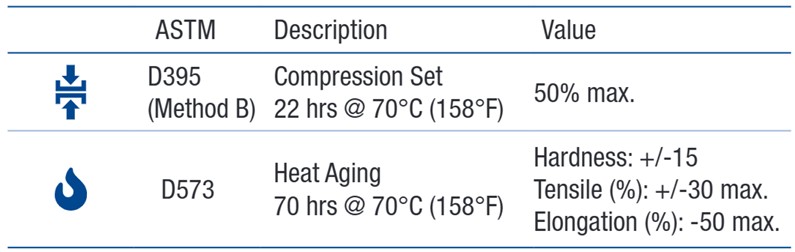

| ASTM D2000 SPECIFICATION AND TESTS
| ADDITIONAL SPECIFICATIONS
| Temperature Range
| Specifications
| Note
ADDITIONAL SPECIFICATIONS
Grade |
N/A Industrial |
Finish |
N/A Fabric (both sides) |
Powder |
N/A No |
Color |
N/A Red |
Specifications
Series |
N/A AB-619 |
ASTM Specification (SI units) |
N/A D2000: 1AA806Z1 |
Specific Gravity (gr/cc) |
N/A 1.8 |
Durometer |
N/A 75 +/-5 |
Tensile Strength min. |
N/A 600 psi |
Elongation min. |
N/A 100 % |
Type |
N/A Industrial Sheets |
Brand |
N/A American Biltrite |
Gauge x Width |
N/A 1/16x36 in |
Avg. Length (Linear Ft. /Roll) |
N/A 110 ft |
Surface |
N/A 330 sft |
Approx. Lbs./Roll |
N/A 159 lb |
Note
Note |
N/A
Maximum pieces per roll:2 • Minimum piece length: 5' Width tolerance: -0.5 / +1" Material is within commercial sheet rubber gauge tolerances. The documentation for sheet rubber gauge tolerances is published on our website. Typical values do not constitute a specification. Please ensure the product meets your application specification prior to order placement. Specifications are subject to change without notice. The website version prevails. Total roll length may vary by ±10% for domestically manufactured (AB-619) Series. |
