Kuri Tec Tundra Air
Translate to Language

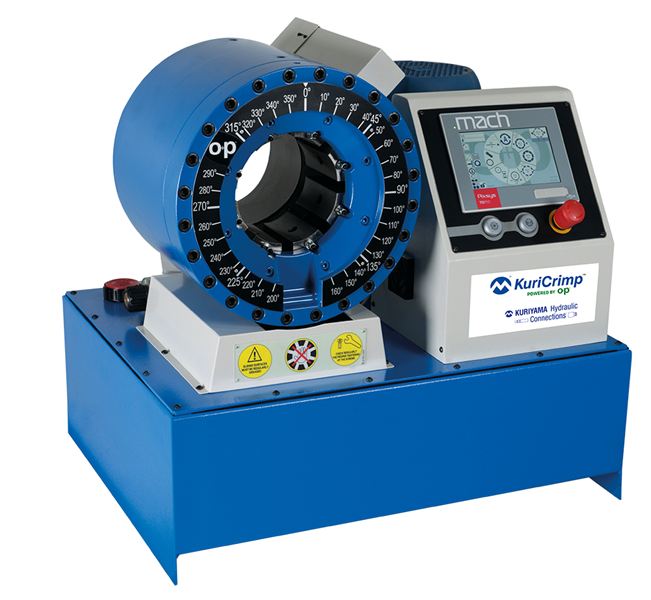

The production oriented KC3-H130 takes a step up in size capabilities, with the ability to crimp 2" wire braid and 4 SP hydraulic hose, as well as 1 1/2" 5,000 PSI 6 SP hydraulic hose intermittently. Its back limit switch and ES3 computerized controller reduce crimp cycle times.
Unit of Measure

Hose Capacity

Hose Capacity for 1 - 2 Wire

2 in

Hose Capacity for 4 Spiral

2 in

Hose Capacity for 6 Spiral

1 1/2 in

Note for Hose Capacity for 6 Spiral

1 1/2" limited to intermittent use with 5,000 PSI hose & 1-pc fittings

Hose Capacity for 90º Fittings

2 in

Hose Capacity for Industrial

3 in

Crimping Force

210 t

Opening Diameter

Opening Diameter [Max] without Dies

154 mm6.06 in

Opening Diameter [Max] with Dies

108 mm4.25 in

Opening Diameter By Die Size

35 mm1.38 in

Crimper Size

Length

29.9 in

Width

27.1 in

Height

28.7 in

Weight

650 lb

Specifications

Brand

Kuriyama

Type

Standard Volume Crimper

Motor Info

5.5 HP (230 V) 3 PH

Power

5.5 hp

Voltage

230 V

Phase

Three

Hydraulic Fluid Type

ISO 46

Hydraulic Fluid Amount

65L = 17.18 Gal.

Die Series

H119

Die Range

6 to 96 in

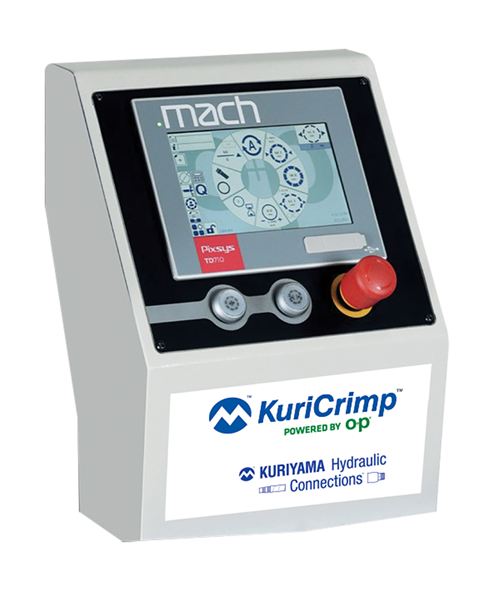

Control Mechanism

Control Mechanism

  • Full-color, touch-screen display
  • Stores up to 1000 crimp specifications
  • Built-in crimp diameter calculator
  • Adjustable reopen diameter
  • USB port option for data transfer
  • Industrial hose crimp calculator

Accessories

Included Accessories

Electric Foot Pedals (PEDAL-ES)
Crimp Calculator
Die Segment Change Tool

Optional Accessories

Quick Change Die Tool (KCQCT-H119)
Production Quick Change Die Tool (KCPQCT-H135)
Die Holder Base (18 pc.) (DIEBASE-H119)
Die Rack (8 pc.) (DIERACK-H119)
Back Limit Switch
Cleaning and Lubrication Kit (CALKIT-H130)
Custom Made Dies
Back Mirror MIRROR-H130
Marking Dies
