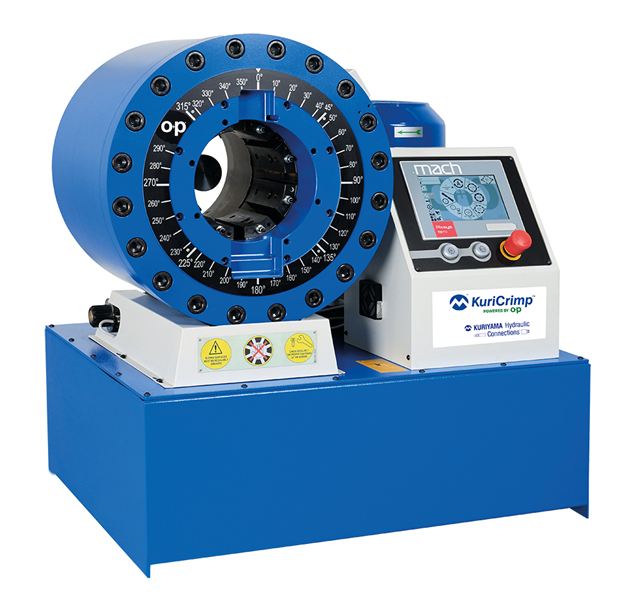

The KC3-H144 is a powerful crossover crimper that handles all types and sizes of hydraulic hose and industrial hose up to 4". Its back limit switch and ES3 computerized controller reduce crimp cycle times. Reduction dies included.
Unit of Measure

Hose Capacity

Hose Capacity for 1 - 2 Wire

N/A 2 1/2 in

Hose Capacity for 4 Spiral

N/A 2 1/2 in

Hose Capacity for 6 Spiral

N/A 2 1/2 in

Hose Capacity for 90º Fittings

N/A 2 in

Hose Capacity for Industrial

N/A 4 in

Crimping Force

N/A 440 t

Opening Diameter

Opening Diameter [Max] without Dies

N/A 203 mm7.99 in

Opening Diameter [Max] with Dies

N/A 176 mm6.93 in

Opening Diameter By Die Size

N/A 45 mm1.77 in

Crimper Size

Length

N/A 33.0 in

Width

N/A 30.3 in

Height

N/A 33.6 in

Weight

N/A 1,213 lb

Specifications

Brand

N/A Kuriyama

Type

N/A Standard Volume Crimper

Motor Info

N/A 7.5 HP (230 V) 3 PH

Power

N/A 7.5 hp

Voltage

N/A 230 V

Phase

N/A Three

Die Series

N/A H119 & H144

Die Range

N/A 6 to 131 in

Control Mechanism

Control Mechanism

N/A
  • Full-color, touch-screen display
  • Stores up to 200 crimp specifications
  • Built-in crimp diameter calculator
  • Adjustable reopen diameter
  • USB port option for data transfer

Accessories

Included Accessories

N/A Back Limit Switch
Crimp Calculator

Optional Accessories

N/A Quick Change Die Tool (KCQCT-H119)
Patented Quick Change Die Tool (KCPQCT-H135) (The KCPQCT-H135 works with the KC3-H144 series crimper.)
Die Holder Base (18 pc.) (DIEBASE-H119)
Die Rack (8 pc.) (DIERACK-H119)
Electric Foot Pedals (PEDAL-ES)
ES3 Upgrades
Back Mirror (MIRROR-H135/170)
Cleaning and Lubrication Kit (CALKIT-H135)
Custom Made Dies
Marking Dies
