Item # |
Dash Size |
Hose ID |

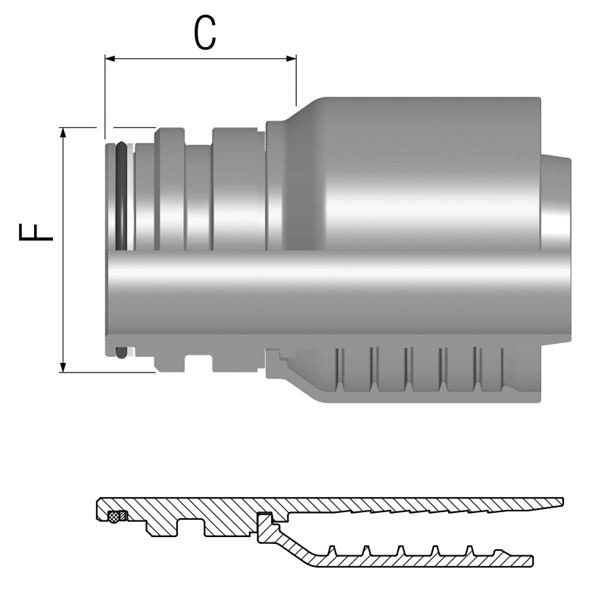

F Thread Size OD |
C Cut - Off Factor |
Weight Per Each |
---|---|---|---|---|---|
A-0404-SLMS | Dash Size N/A 04 | Hose ID N/A 1/4 in6.4 mm | F Thread Size OD N/A 10 mm | C Cut - Off Factor N/A 35.8 mm | Weight Per Each N/A 0.07 lb |
A-0606-SLMS | Dash Size N/A 06 | Hose ID N/A 3/8 in9.5 mm | F Thread Size OD N/A 14 mm | C Cut - Off Factor N/A 35.8 mm | Weight Per Each N/A 0.12 lb |
A-0808-SLMS | Dash Size N/A 08 | Hose ID N/A 1/2 in12.7 mm | F Thread Size OD N/A 18 mm | C Cut - Off Factor N/A 36.1 mm | Weight Per Each N/A 0.18 lb |
A-1212-SLMS | Dash Size N/A 12 | Hose ID N/A 3/4 in19.0 mm | F Thread Size OD N/A 24 mm | C Cut - Off Factor N/A 37.6 mm | Weight Per Each N/A 0.29 lb |
A-1616-SLMS | Dash Size N/A 16 | Hose ID N/A 1 in25.4 mm | F Thread Size OD N/A 31 mm | C Cut - Off Factor N/A 49.4 mm | Weight Per Each N/A 0.66 lb |
A-2020-SLMS | Dash Size N/A 20 | Hose ID N/A 1 1/4 in31.8 mm | F Thread Size OD N/A 38 mm | C Cut - Off Factor N/A 45.1 mm | Weight Per Each N/A 0.82 lb |
A-3232-SLMS | Dash Size N/A 32 | Hose ID N/A 2.00 in50.8 mm | F Thread Size OD N/A 56 mm | C Cut - Off Factor N/A 51.0 mm | Weight Per Each N/A 3.21 lb |
