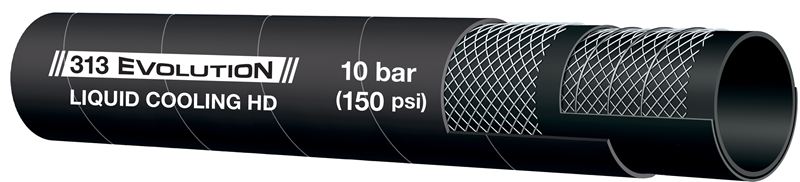

  • 313-Evolution
Liquid Cooling - hard wall - EPDM UL 94 V0
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part Number

ID

OD

Max. Working Pressure

Burst Pressure

Vacuum %

Bend Radius

Weight

T313AA100X100 N/A 1.42 in36 mm N/A 1 in25 mm N/A 150 psi N/A 600 psi N/A 100 N/A 1 5/12 in36 mm N/A 0.52 lbs/ft
T313AA125X100 N/A 1.73 in44 mm N/A 1 1/4 in32 mm N/A 150 psi N/A 600 psi N/A 100 N/A 1 9/10 in48 mm N/A 0.68 lbs/ft
T313AA150X100 N/A 1.97 in50 mm N/A 1 1/2 in38 mm N/A 150 psi N/A 600 psi N/A 100 N/A 2 1/4 in57 mm N/A 0.79 lbs/ft
T313AA200X100 N/A 2.52 in64 mm N/A 2 in51 mm N/A 150 psi N/A 600 psi N/A 100 N/A 3 in76 mm N/A 1.18 lbs/ft
T313AA250X100 N/A 3.03 in77 mm N/A 2 1/2 in63 mm N/A 150 psi N/A 600 psi N/A 90 N/A 4 31/32 in126 mm N/A 1.57 lbs/ft
T313AA300X100 N/A 3.58 in91 mm N/A 3 in76 mm N/A 150 psi N/A 600 psi N/A 90 N/A 5 31/32 in152 mm N/A 1.96 lbs/ft
T313AA400X100 N/A 4.57 in116 mm N/A 4 in102 mm N/A 150 psi N/A 450 psi N/A 90 N/A 12 1/32 in306 mm N/A 2.51 lbs/ft
T313AA600X100 N/A 6.73 in171 mm N/A 6 in152 mm N/A 150 psi N/A 375 psi N/A 80 N/A 23 14/15 in608 mm N/A 4.75 lbs/ft
1 - 8 of 8 | Results Per Page | View | Unit of Measure
