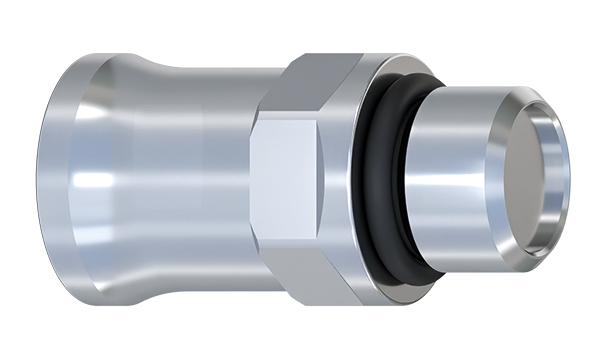

  • UQDBF-Socket
    The Alfagomma UQD & UQDB quick-connect coupling series is an essential component for liquid cooling systems in data centers. With a focus on secure and easy connections, leak-proof design, high flow rates, and resistance to mechanical stresses, it is tailored to meet the rigorous demands of data centre liquid cooling.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Thread F1

A

B

C

E2E length

Hex

UQDBF-02 N/A 9/16-18 MORB in N/A 1.32 in33.6 mm N/A 0.93 in23.6 mm N/A 0.71 in18.0 mm N/A 35.8-37.2 mm N/A 0.55 in14.0 mm
UQDBF-04 N/A 3/4-16 MORB in N/A 1.56 in39.5 mm N/A 1.12 in28.5 mm N/A 0.89 in22.5 mm N/A 44.0-45.4 mm N/A 0.75 in19.0 mm
UQDBF-06 N/A 7/8-14 MORB in N/A 1.75 in44.5 mm N/A 1.25 in31.8 mm N/A 1.08 in27.4 mm N/A 47.5-48.9 mm N/A 0.94 in24.0 mm
UQDBF-08 N/A 1-1/16-12 MORB in N/A 1.99 in50.5 mm N/A 1.39 in35.4 mm N/A 1.24 in31.4 mm N/A 51.8-53.4 mm N/A 1.06 in27.0 mm
