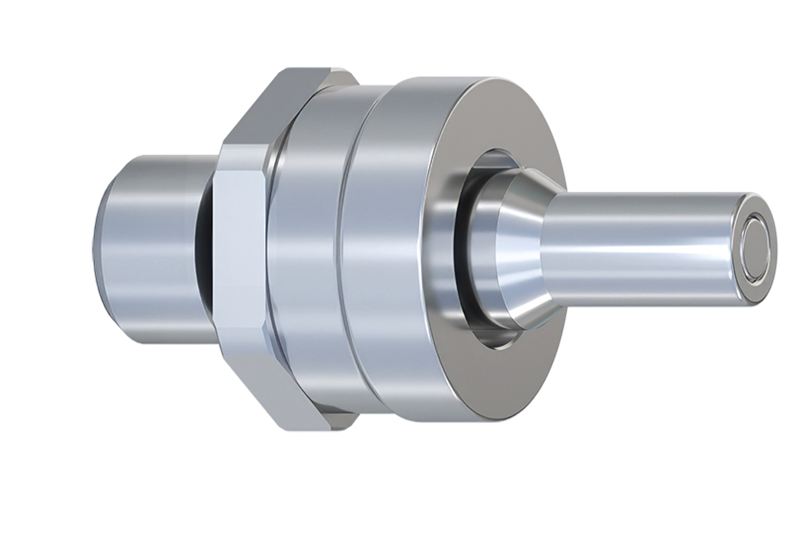

  • UQBDM-Plug-ORB
    The Alfagomma UQD & UQDB quick-connect coupling series is an essential component for liquid cooling systems in data centers. With a focus on secure and easy connections, leak-proof design, high flow rates, and resistance to mechanical stresses, it is tailored to meet the rigorous demands of data centre liquid cooling.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Thread F1

A

B

C

J

Hex

E2E length

UQDBM-02 N/A 7/16-20 MORB in N/A 1.42 in36.0 mm N/A 1.06 in27.0 mm N/A 0.79 in20.0 mm N/A 0.26 in6.65 mm N/A 0.75 in19.0 mm N/A 35-37 mm
UQDBM-04 N/A 9/16-18 MORB in N/A 1.78 in45.3 mm N/A 1.39 in35.4 mm N/A 0.98 in25.0 mm N/A 0.43 in11.00 mm N/A 0.87 in22.0 mm N/A 44-45 mm
UQDBM-06 N/A 3/4-16 MORB in N/A 1.97 in50.0 mm N/A 1.53 in38.9 mm N/A 1.11 in28.3 mm N/A 0.56 in14.30 mm N/A 1.06 in27.0 mm N/A 47-48 mm
UQDBM-08 N/A 7/8-14 MORB in N/A 2.19 in55.6 mm N/A 1.69 in42.9 mm N/A 1.16 in29.5 mm N/A 0.69 in17.50 mm N/A 1.06 in27.0 mm N/A 51-53 mm
