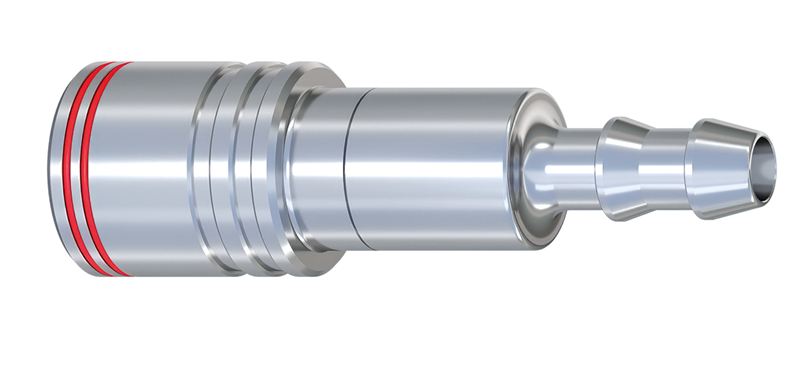

  • UQDF---Push-On-Female
    The Alfagomma UQD & UQDB quick-connect coupling series is an essential component for liquid cooling systems in data centers. With a focus on secure and easy connections, leak-proof design, high flow rates, and resistance to mechanical stresses, it is tailored to meet the rigorous demands of data centre liquid cooling.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Color

End size / Hose Tail

A

B

C

D

UQDF-02-BU-SS N/A Blue N/A 1/4 in N/A 0.73 in18.50 mm N/A 1.52 in38.50 mm N/A 0.75 in19.00 mm N/A 0.55 in14.00 mm
UQDF-02-RD-SS N/A Red N/A 1/4 in N/A 0.73 in18.50 mm N/A 1.52 in38.50 mm N/A 0.75 in19.00 mm N/A 0.55 in14.00 mm
UQDF-04-BU-SS N/A Blue N/A 3/8 in N/A 0.96 in24.50 mm N/A 1.95 in49.50 mm N/A 0.93 in23.70 mm N/A 0.75 in19.00 mm
UQDF-04-RD-SS N/A Red N/A 3/8 in N/A 0.96 in24.50 mm N/A 1.95 in49.50 mm N/A 0.93 in23.70 mm N/A 0.75 in19.00 mm
UQDF-06-BU-SS N/A Blue N/A 1/2 in N/A 1.10 in28.00 mm N/A 2.05 in52.00 mm N/A 1.02 in25.80 mm N/A 0.91 in23.00 mm
UQDF-06-RD-SS N/A Red N/A 1/2 in N/A 1.10 in28.00 mm N/A 2.05 in52.00 mm N/A 1.02 in25.80 mm N/A 0.91 in23.00 mm
UQDF-08-BU-SS N/A Blue N/A 5/8 in N/A 1.25 in31.80 mm N/A 2.39 in60.60 mm N/A 1.52 in38.50 mm N/A 1.08 in27.50 mm
UQDF-08-RD-SS N/A Red N/A 5/8 in N/A 1.25 in31.80 mm N/A 2.39 in60.60 mm N/A 1.52 in38.50 mm N/A 1.08 in27.50 mm
