hoses
  • HS1232W

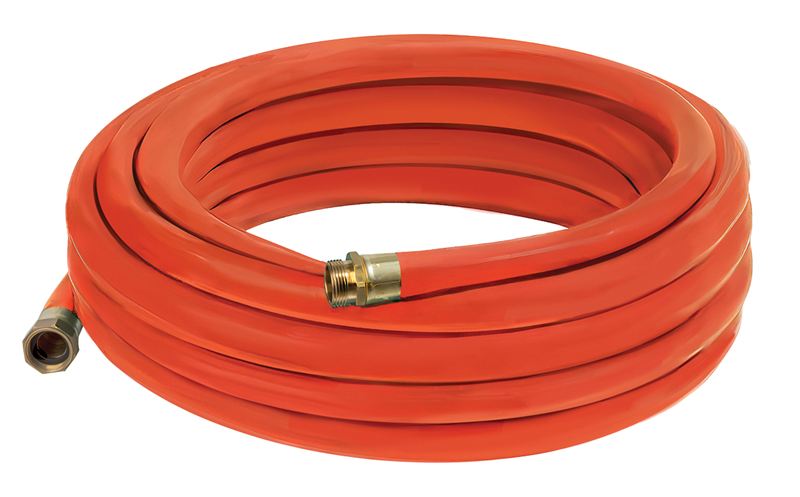

Ultra-Flexible Low Temperature PVC Water Hose Assemblies
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Series Number

Size Code

ID

OD

Max. Working Pressure at 70oF (20oC)

Max. Working Pressure at 122oF (50oC)

Assembled Lengths

Weight per Pkg.

HS1232W-12x25 N/A 12 N/A 3/4 in19.1 mm N/A 1.080 in27.4 mm N/A 120 psi N/A 200 psi N/A 25 ft N/A 6.5 lbs/ft
HS1232W-12x50 N/A 12 N/A 3/4 in19.1 mm N/A 1.080 in27.4 mm N/A 120 psi N/A 200 psi N/A 50 ft N/A 12.8 lbs/ft
HS1232W-12x100 N/A 12 N/A 3/4 in19.1 mm N/A 1.080 in27.4 mm N/A 120 psi N/A 200 psi N/A 100 ft N/A 25.3 lbs/ft
HS1232W-16x25 N/A 16 N/A 1 in25.4 mm N/A 1.360 in34.5 mm N/A 120 psi N/A 200 psi N/A 25 ft N/A 9.0 lbs/ft
HS1232W-16x50 N/A 16 N/A 1 in25.4 mm N/A 1.360 in34.5 mm N/A 120 psi N/A 200 psi N/A 50 ft N/A 17.8 lbs/ft
HS1232W-16x100 N/A 16 N/A 1 in25.4 mm N/A 1.360 in34.5 mm N/A 120 psi N/A 200 psi N/A 100 ft N/A 35.3 lbs/ft
